Description:

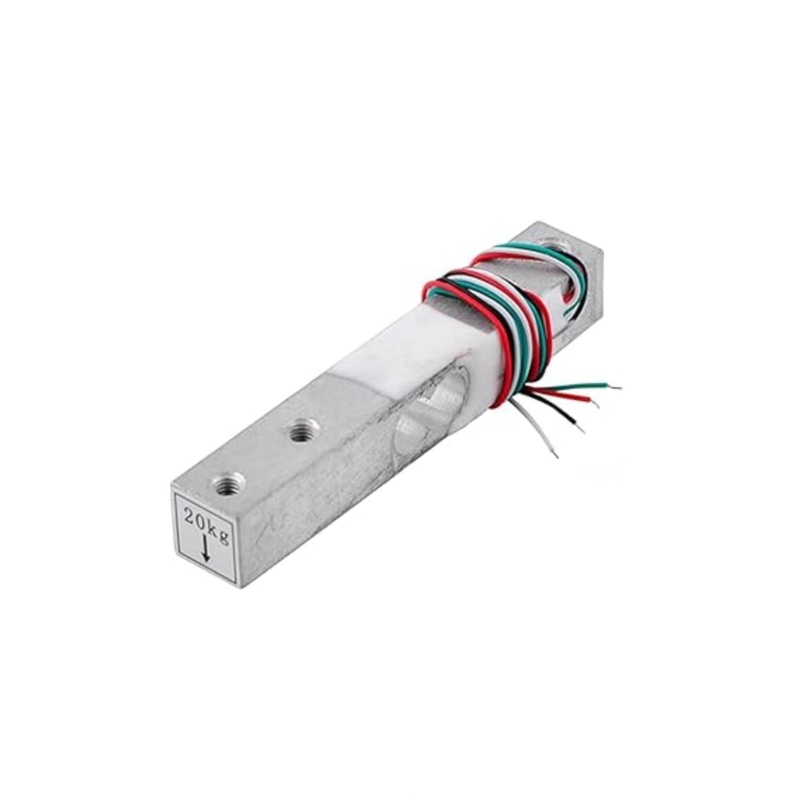

YZC-133 Weighing Sensor With Wire is Made of high-quality aluminum alloy, a parallel beam structure. 20kg High Precision Load Cell Sensor is suitable for electronic kitchen scales, small household appliance force measurement, pet feeders, and other intelligent weighing equipment.

Specifications:

• Model: YZC-133
• Rated output: 1.00.15mV/V
• Nonlinearity: 0.0005
• Repeatability: 0.0003
• Hysteresis: 0.0003
• Creep(5min): 0.001
• Temperature effect on sensitivity: 0.003%RO/C
• Temperature effect on zero: 0.02%RO/C
• Zero balance: 0.1%RO
• Input resistance: 106620
• Output resistance: 100020
• Insulation resistance: 2000M (50V)
• Recommended excitation voltage: 5V
• Temperature-compensated voltage: -10~+50C
• Operating temperature range: -20~+65C
• Safe overload: 120%RO
• Ultimate overload: 150%RO
• Cell material Load: Aluminum
• Connection cable: 0.8X180m

Connection:

• Red to E+
• Black to E-
• Green to A+
• White to A-

Package Included:

1 x YZC-133 20kg Weighing Sensor 20KG Load Cell Sensor 20KG Weighting Load Cell Sensor With Wire Durable And Accurate 20kg Load Cell Sensor For Kitchen Scales
