DRIVER CHIP1331INTERFACESPIRESOLUTION9664DISPLAY SIZE0.95inchCOLORS65K colorfulVISIBLE ANGLE>160OPERATING TEMP. ()-20~70STORAGE TEMP. ()-30~80OPERATING VOLTAGE3.3V / 5VAPPLICABILITYHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32Descriptio
| DRIVER CHIP | 1331 |
|---|---|
| INTERFACE | SPI |
| RESOLUTION | 9664 |
| DISPLAY SIZE | 0.95inch |
| COLORS | 65K colorful |
| VISIBLE ANGLE | >160 |
| OPERATING TEMP. () | -20~70 |
| STORAGE TEMP. () | -30~80 |
| OPERATING VOLTAGE | 3.3V / 5V |
| APPLICABILITY | Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32 |

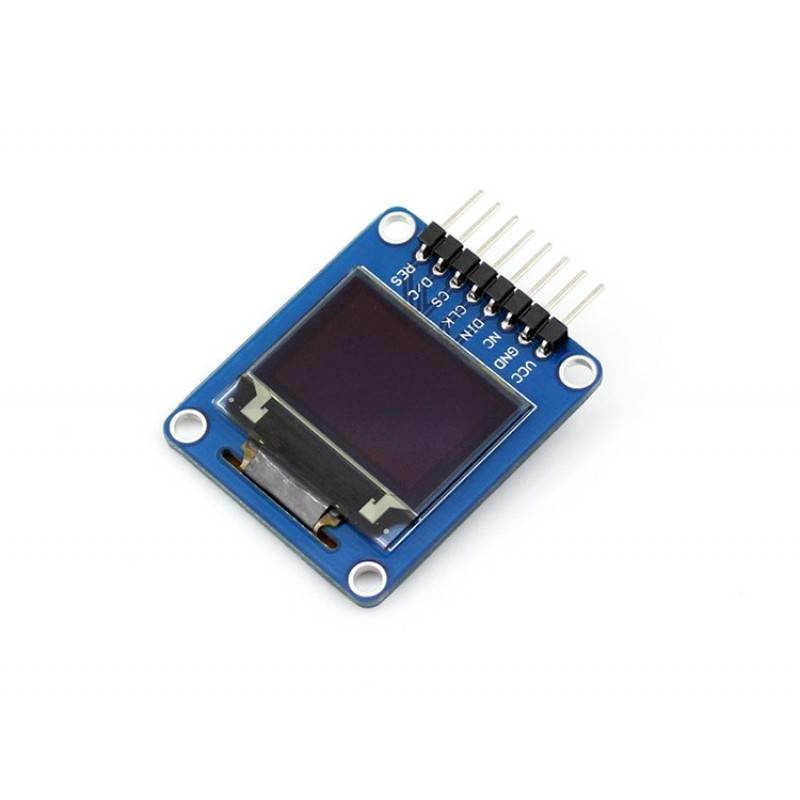

0.95inch RGB OLED, SPI interface, curved/horizontal pinheader.
| DRIVER CHIP | 1331 |
|---|---|
| INTERFACE | SPI |
| RESOLUTION | 9664 |
| DISPLAY SIZE | 0.95inch |
| COLORS | 65K colorful |
| VISIBLE ANGLE | >160 |
| OPERATING TEMP. () | -20~70 |
| STORAGE TEMP. () | -30~80 |
| OPERATING VOLTAGE | 3.3V / 5V |
| APPLICABILITY | Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32 |
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power positive (3.3~5V power input) |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | DIN | Data input |
| 5 | CLK | Clock signal input |
| 6 | CS | Chip selection, low active |
| 7 | D/C | Command signal, low level for command, high level for data |
| 8 | RES | Reset signal, low active |
The 0.95inch RGB OLED provides 2 options for the onboard pinheader:
0.95inch RGB OLED (A) x 1
