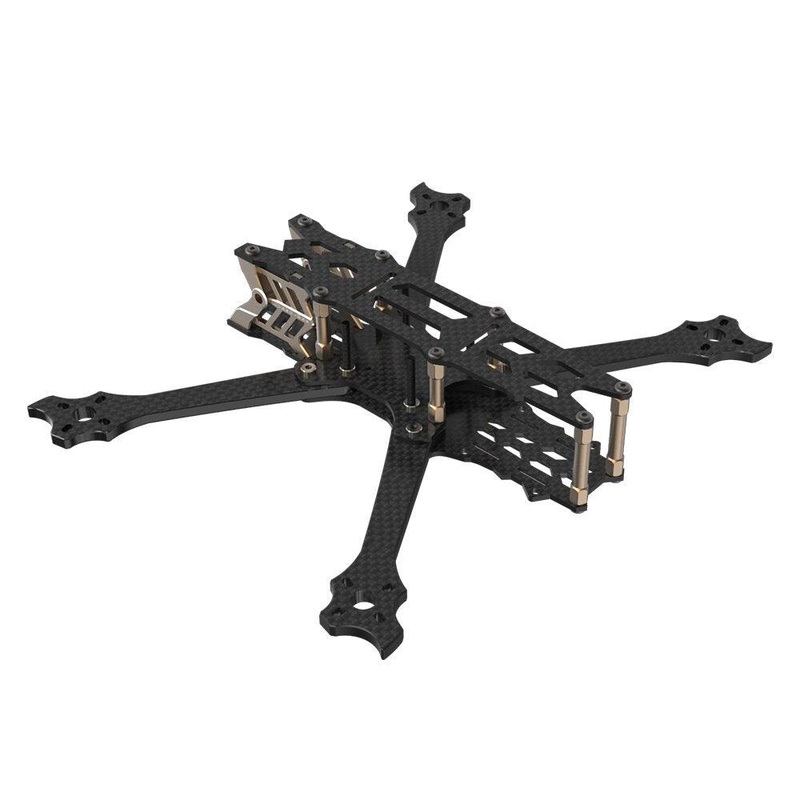

SpeedyBee FS225 V2 FPV Frame Kit SPECIFICATIONSOrigin: Mainland ChinaModel Number: SpeedyBee FS225 V2Compatible Action Camera Brand: SpeedybeeBrand Name: RuncamSpecificationsModelSpeedyBee FS225 V2Wheelbase225mmWeight119gFrame Height36mmCamera fixed width1
Origin: Mainland China
Model Number: SpeedyBee FS225 V2
Compatible Action Camera Brand: Speedybee
Brand Name: Runcam
Specifications
|
Model |
SpeedyBee FS225 V2 |
|
Wheelbase |
225mm |
|
Weight |
119g |
|
Frame Height |
36mm |
|
Camera fixed width |
19mm/20mm |
|
Material |
Carbon Fiber |
|
Top plate thickness |
2mm |
|
Heap bottom plate thickness |
2mm |
|
Tail bottom plate thickness |
2mm |
|
Arm thickness |
5mm |
|
Flight Control fixed Size |
30.5*30.5/20*20mm |
|
Transmitter fixed size |
30.5*30.5/20*20mm20*20/Sliding Mounting |
|
DJI Transmitter |
Extra TPU Printer Needed |
19mm/20mm wide camera installation method is supported, and it is optional!
20mm/30.5mm hole pitch
20mm hole pitch/30.5mm pitch stack support, up to three-layer stack installation
Only suitable for VTX installation, is a standard frame.
The frame provides installation methods for various specitications of VTX
Replaceable arm for easy maintenance
4 X M3x3OmmCup Head Screw 8 X Pressure riveting nut 1X Battery tie 7R 1X Batterie non-slip stickers 1X XT6O TPU 1X Antenna TPU 4 x Antennda Tube spzedy Bzz Top plate 1X Bottom plate 2X MBx2SmmAluminum Post
