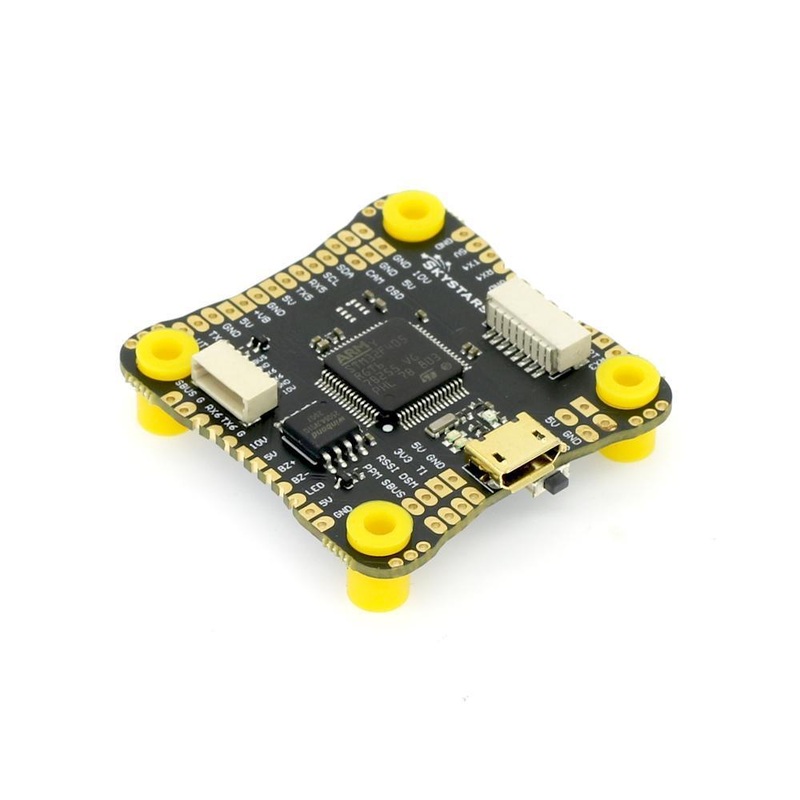

SkyStar F722 F7 Flight Controller DJI Compatible 30.5×30.5mm

Specifications:

• MCU: STM32F722RGT6 216MHz
• IMU: MPU6000 (SPI)
• OSD: Betaflight OSD &DJI HD OSD (UART6)
• 6 hardware UARTS (UART1,2,3,4,6,7)
• 5V 3A & 10V 3A
• Input Voltage: 3-6S Lipo
• Blackbox: 8MB
• Firmware: SKYSTARS F7HD
• Dimensions: 38.5x40x6.2mm
• Mounting Holes: Standard 30.5mm square to the center of holes
• Weight: 6.2g

Features:

• Designed the LED installation position in the four corners, support WS2812 Programmable LED.
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,PPM) . Support 3.3V Satellite Receiver.
• High-performance / low-noise / high sensitivity IMU. MPU6000 with 6-axis gyro and accelerometer.
• Includes a DJI HD cable in default
• Input voltage12V-26V (3-6S)
• Automatic voltage monitoring.
