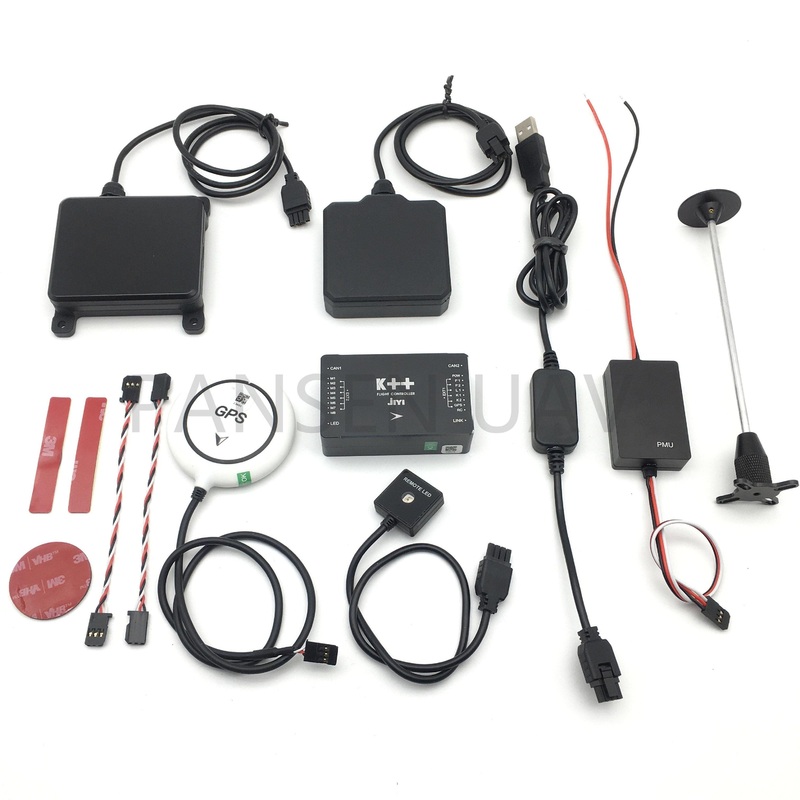

JIYI K++ Flight ControlSPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Recommend Age: 12+y

Quantity: 1 pcs

Origin: Mainland China

Model Number: flight control

Material: Rubber

For Vehicle Type: Airplanes

Brand Name: aerops

Specifications:

Supported multi-rotor types
Quadrotor (+, X)
Six rotors (+, X, IY and YI coaxial twins)
Eight rotors (+, X, V)
Supported ESC Type: 490HZ PWM ESC
Maximum output: channel 8 channels
Recommended remote control type: SBUS receiver
Supported receiver types: PPM, S-BUS receiver
Support for expansion equipment: Radar, K-BOX, IOT, RTK, digital transmission, flow sensor module, FPVCamera
Working voltage: 2-12S
Power consumption is less than 5W
Working environment temperature -10-60 degrees
Storage ambient temperature -25-60 degrees
Seismic rating <1G
Flight characteristics

Hovering accuracy Horizontal direction 1.5 m
Vertical direction0.5 m
Maximum tilt angle 30 degrees
Maximum yaw speed 150 degrees / sec
Maximum vertical speed 6 m / s
Wind resistance, continuous wind: level 5

Flight mode and functions:

Model of posture, GPS, AB, course assignments, a key turned out of control protection, continue to work out of control, and low voltage protection, fences, log storage capabilities, landing lock function, the function of a no-fly zone, shock protection, lost star protection function, active noise reduction function, the motor sequence detection, direction detection, double pump mode, fault protection function, precision spraying, water pump switch control, water pump linkage control.
