Overview

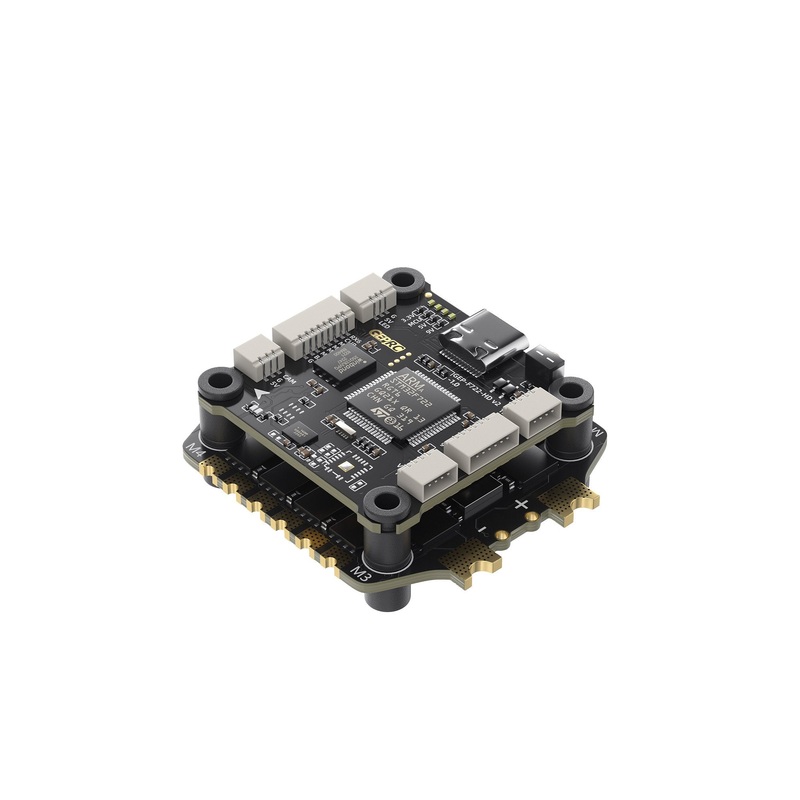

The GEPRC TAKER F722 BLS 60A V2 Stack is a high-performance flight controller and ESC combo designed for FPV pilots seeking powerful and stable flight control. It integrates the GEP-F722-HD V2 flight controller, built around the STM32F722 MCU and ICM42688-P gyroscope, with the TAKER H60_BLS 60A 4in1 ESC, delivering up to 60A continuous current on 36S LiPo setups.

With features like 16MB black box, dual BEC outputs, Type-C interface, and direct DJI Air Unit support, this stack provides smooth performance for freestyle, cinematic, or long-range drones.

Features

Flight Controller (GEP-F722-HD V2)

• Utilizes STM32F722 chip for strong computing and processing capability

• Features ICM42688-P gyroscope (SPI) for accurate and responsive sensor input

• 16MB onboard black box for reliable flight log storage

• Integrated LC power filter ensures clean power for sensitive components

• USB Type-C port for easy connectivity and configuration

• Direct plug-in design for DJI Air Unit, no soldering required

• Dual BEC outputs: 5V@3A and [email protected] for system and peripheral power

• BetaFlight OSD with AT7456E chip

• Includes vibration-damping grommets to ensure stable gyro performance

ESC (TAKER H60_BLS 60A 4in1)

• Input voltage: 36S LiPo

• Continuous current: 60A

• Burst current: 65A (5 seconds)

• Protocol support: DShot150 / DShot300 / DShot600

• Built-in current sensor (Ammeter) for telemetry feedback

• Compact form factor with dual MOS design for efficient power delivery

Specifications

GEP-F722-HD V2 Flight Controller

• MCU: STM32F722

• IMU: ICM42688-P (SPI)

• Black Box: 16MB onboard

• USB Interface: Type-C

• OSD: BetaFlight OSD with AT7456E chip

• BEC Output: 5V@3A + [email protected]

• Firmware Target: GEPRCF722

• UART Ports: 5

• Input Voltage: 36S LiPo

• Power Filter: Integrated LC filter

• Size: 36.85 36.85mm

• Mounting: 30.5 30.5mm (4mm, convertible to 3mm with silicone grommets)

• Weight: 8.1g

TAKER H60_BLS 60A 4IN1 ESC

• Input Voltage: 36S LiPo

• Continuous Current: 60A

• Burst Current: 65A (5 seconds)

• Supported Protocols: DShot150 / 300 / 600

• Current Sensor: Supported

• Firmware Target: B_X_30

• Size: 42 45.7mm

• Mounting: 30.5 30.5mm (4mm, convertible to 3mm with silicone grommets)

• Weight: 14.9g

What’s Included

• 1 GEP-F722-HD V2 Flight Controller

• 1 TAKER H60_BLS 60A 4in1 ESC

• 1 Capacitor

• 1 DJI Air Unit Adapter Cable

• 1 Flight Controller Adapter Cable

• 1 XT60 Power Cable

• 4 M330 Screws

• 4 M325 Screws

• 8 Nylon Nuts

• 8 Silicone Grommets

• 2 SH1.0 4-Pin Silicone Cables

• 1 Camera Connection Cable
