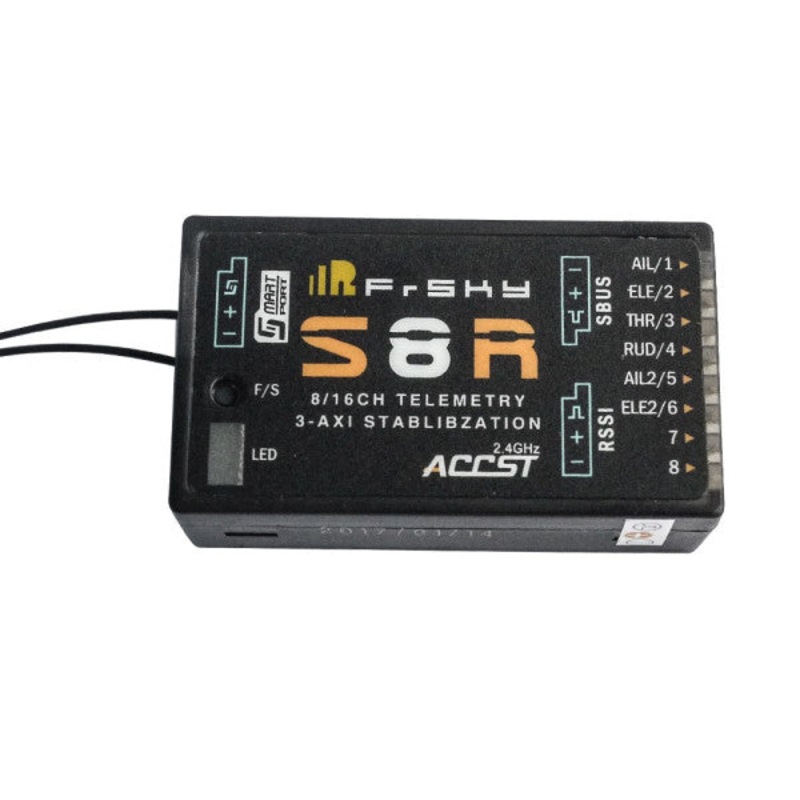

Frsky S8R 16CH RSSI PWM Output Telemetry Receiver With Smart Port

The S8R is a FrSky X-series receiver with built in 3-a xis stabilization. For conventional Fixed Wing Models it will support stabilization, automatic level, hover andblade-edgeflight modes, for flying wings and V-tail models it supports stabilization and automatic level flight modes. You can edit the type of model and manipulate all these features via the S8R.Config or S8R.lua. The S8R can also be used as a standard 8 channel X series receiver if it is required.

Tip: Use the S8R with 3-a xis stabilization as a slave receiver with the RB-10 to give you that extra peace of mind by buying youvaluabletime to bring your model home.
Description:
Brand: Frysky
Item number: S8R
S8R (8CH/16CH receiver with built-in 3-a xis gy ro and 3-a xis acceleration)46.47×26.78×14.12mm(L x W x H)Weight: 14gNumber of Channels: 16CH (1-8ch from conventional channel output, 1-16ch from SBUS port)With RSSI PWM output on board: PWM voltage output (0~3.3V), 100HZ, 1500500usOperating Voltage R ange: 4.0~10VOperating R ange: full r angeGyroscope Measurement R ange 2000dpsAccelerometer Measurement R ange: 4gFirmware UpgradeableCompability: Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 modeS8R-EU only works with Frsky Horus X12S and Taranis X9D Plus/X9E/X7/XJT in D16-EU mode.

Features:
*Built-in three-a xis gyroscope and three-a xis accelerometer sensor module*Built-in RSSI PWM output (0~3.3V)*Built-in battery voltage detection*Smart Port enabled
FrSky S8R Receiver Manual, Click Here

Package Included:
1XFrSky S8R 16Ch Telemetry Receiver

,,,,
